Warehouse Lighting Calculator [5-Minute Guide]
Are you unknowingly draining your operational budget through inefficient illumination? Many facility managers underestimate how profoundly a poor industrial lighting layout impacts overhead costs and worker safety. Guessing your fixture count when retrofitting a facility proves to be a costly mistake. By utilizing a warehouse lighting calculator, you can determine the precise number of fixtures required. This calculation meets strict OSHA illumination standards while maximizing your return on investment. A data-driven approach eliminates the guesswork from determining specific foot-candle requirements. It also ensures optimal visibility across every aisle. You will discover how to balance modern energy efficiency with superior light distribution. This strategic insight transforms your overhead infrastructure into a measurable operational advantage.
What is a Warehouse Lighting Calculator?
When planning facility upgrades or embarking on new industrial builds, a warehouse lighting calculator serves as your foundational planning tool. It determines the precise fixture count, spacing, and lumen output required to properly illuminate your specific commercial environment. The industry is rapidly shifting away from outdated HID and fluorescent setups. Adopting modern LED standards now demands a highly sophisticated approach to facility design.
Modern LEDs offer dramatically higher luminous efficacy. Attempting a basic fixture-for-fixture replacement often yields unpredictable results. These calculators leverage precise photometric data to model exactly how light interacts with your specific racking layouts and ceiling heights. You can review lighting calculation standards to see why these exact spatial metrics remain critical for both compliance and worker well-being.
Ultimately, accurate computations prevent costly over-illumination, which needlessly wastes energy. They also eliminate dangerous under-illumination that can lead to workplace accidents. By anticipating these variables mathematically, you ensure your next facility lighting retrofit achieves perfect uniformity and safety from day one.
IESNA and OSHA Standards: Foot-candle Requirements by Zone
When planning your How big is a shipping warehouse, achieving the correct illumination levels is a critical regulatory and safety mandate. Your lighting design must strictly align with established industry benchmarks. This alignment ensures both maximum operational efficiency and comprehensive worker protection.
IESNA Standards for Warehouses
The Illuminating Engineering Society (IESNA) provides precise foot-candle recommendations tailored to your facility’s specific tasks. For instance, active picking areas require significantly higher illumination compared to inactive bulk storage zones. Maintaining the correct light levels precisely at the designated work plane height provides clear visibility. It ensures your team can read inventory labels quickly and navigate safely. A warehouse lighting calculator effectively simplifies mapping these photometric distributions.

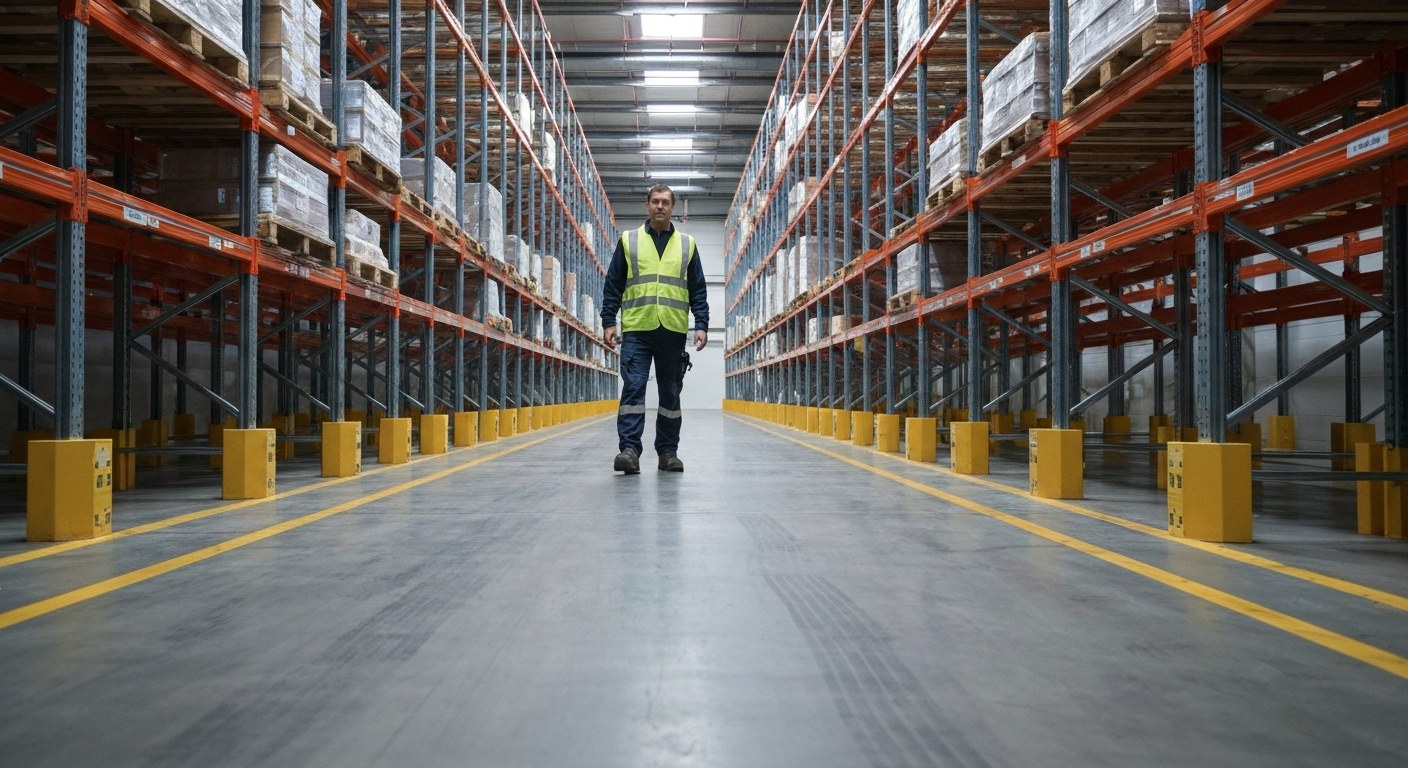

OSHA Safety Compliance
While meeting the 5-footcandle minimum of OSHA safety compliance requirements is non-negotiable for industrial spaces, you should aim higher. Proper illumination levels drastically improve overall safety by directly reducing visual glare. This condition proves especially hazardous for forklift operators navigating narrow aisles. The table below outlines the recommended modern foot-candle targets for different operational areas.
| Facility Zone | Required Foot-candles | Primary Safety Benefit |
|---|---|---|
| Active Picking | 30 – 50 fc | Improves label readability |
| Inactive Storage | 10 – 20 fc | Aids obstacle avoidance |
| Loading Docks | 20 – 30 fc | Minimizes forklift operator glare |
How to Calculate Industrial Light Levels: Spacing and Height
To reliably achieve these target foot-candle levels across your facility without creating dark spots, you must follow a systematic calculation process.
- Determine the Spacing-to-Mounting-Height Ratio: Apply the foundational mathematical formula for your specific layout. You should aim for a Spacing-to-Mounting-Height Ratio between 1:1 and 1.5:1. This critical overlap prevents dangerous shadows. For further planning, see our guide on Best practices for warehouse management.
- Factor in structural interference: Vertical storage severely impacts light distribution. You must account for your specific Racking Height because tall pallet racks actively absorb and block light. Without this Racking Factor adjustment, lower storage tiers remain dangerously dim.
- Optimize for Aisle Width and Beam Angle: Evaluate the exact geometry of your pathways. In narrow configurations, you must match your Aisle Width with a precise, narrow Beam Angle. This strategy directs lumens exactly where operators need them rather than wasting energy illuminating shelving tops. Always verify your specifications against energy efficiency guidelines to confirm performance.
Visualizing these spatial adjustments ensures your layout strategy is perfectly aligned. Consider the configuration illustrated below:
With your layout strategy mathematically mapped, the next phase is selecting the correct fixture technology to populate that grid.

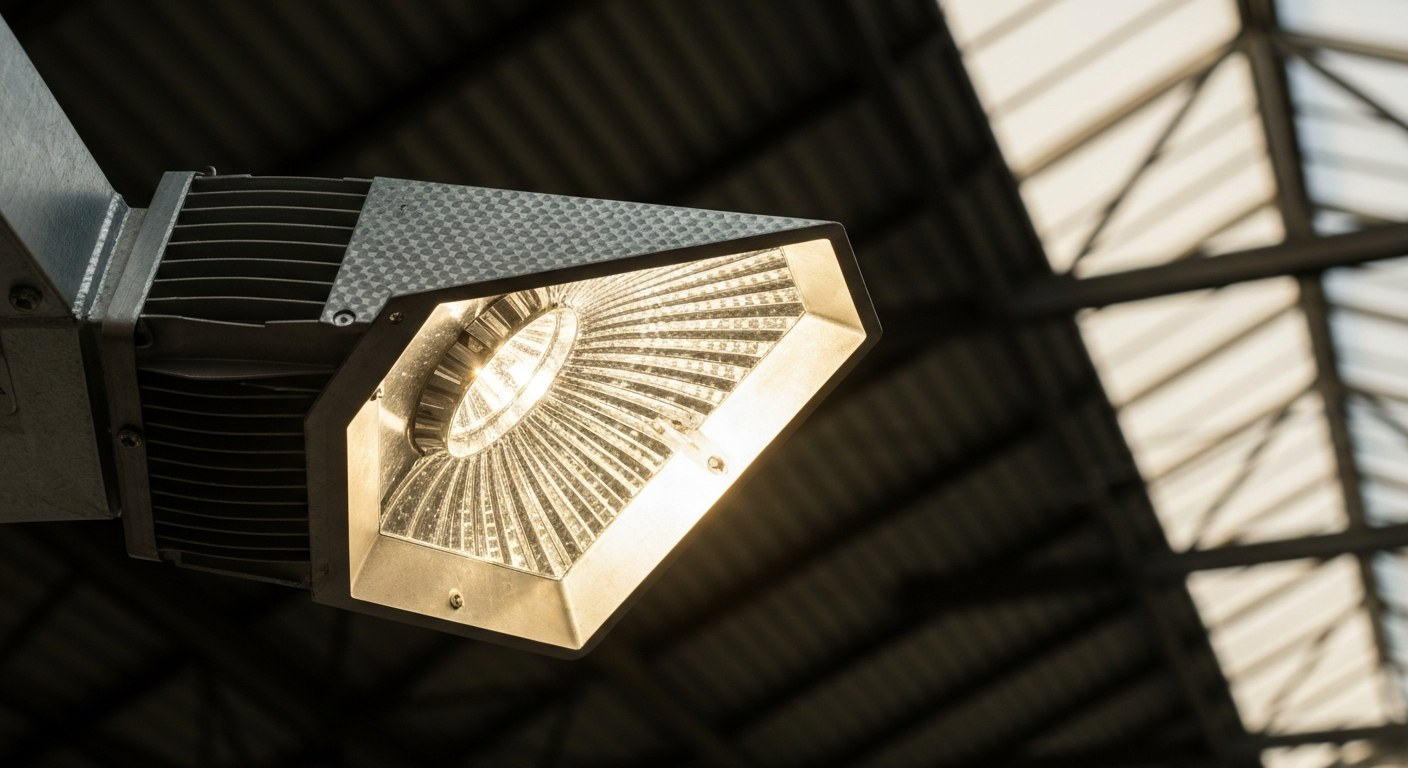

The Ultimate Guide to LED High Bay Selection
Relying on legacy technology compromises long-term efficiency when upgrading your facility. LED stands as the absolute industry standard. It renders HID and fluorescent systems completely obsolete due to their slow warm-up times and extreme heat output. Evaluating your space with a How to manage warehouse inventory helps you identify these necessary upgrades quickly.
UFO vs. Linear High Bays
| Fixture Type | Best Application | Light Pattern |
|---|---|---|
| UFO High Bay | Open floors and manufacturing spaces. | Circular, wide spread. |
| Linear High Bay | Narrow aisles and racking corridors. | Long, rectangular spread. |
Matching the form factor to your specific layout ensures you direct lumens exactly where they belong. This alignment serves as a critical factor to verify when using a warehouse lighting calculator to plan your grid.
Color Temperature and Visibility
You should select a 5000K (Daylight) CCT for optimal productivity and visibility. This crisp illumination mimics natural daylight to keep your workforce alert throughout their shifts. Combined with a strong Color Rendering Index, it ensures your team can easily read labels and spot safety hazards on the floor. Transitioning to advanced LED fixtures guarantees a vibrant, safe environment while eliminating the risks tied to outdated lamps.
Upgrading to these advanced fixtures not only improves safety but also presents a major opportunity to reduce long-term operational costs.
Maximizing ROI: Energy Savings, Controls, and Rebates
Understanding your return on investment is paramount when planning an infrastructure upgrade. A warehouse lighting calculator allows you to project accurate payback periods. These projections are tailored specifically to your operational hours and local energy rates. This financial clarity transforms lighting from a sunk cost into an appreciating asset.
Integrating smart control systems is strictly non-negotiable for optimizing financial returns. Implementing occupancy sensors and ‘High-Low’ dimming capabilities yields an additional 30-50% in energy savings. These controls ensure spaces remain illuminated only when necessary. This technology perfectly complements your broader Amazon Warehouse Pros and Cons (Is It Worth It?) strategy by reducing wasted power in low-traffic aisles.
Finally, you must actively pursue financial incentives to offset initial capital expenditures. Selecting fixtures with DLC (DesignLights Consortium) qualification is crucial. This certification successfully unlocks most local utility rebates. Capitalizing on these programs accelerates your break-even point, securing an infrastructure strategy that remains operationally brilliant and financially sound.
To accurately project these financial returns and structural requirements, you need to execute the layout simulation properly.
Step-by-Step Instructions for Using the Calculator
Using a warehouse lighting calculator effectively requires completely accurate data entry. Follow this systematic approach to generate reliable layout plans.
- Measure Facility Dimensions: Gather your exact facility dimensions. Record the length, width, and ceiling height. These specific metrics dictate your baseline spatial volume.
- Determine Material Properties: Evaluate your building materials to establish accurate Surface Reflectance values for the walls, ceiling, and floor.
- Enter Efficiency Metrics: Input the Coefficient of Utilization and the Light Loss Factor into the software tool. According to industry standards, these variables ensure complete accuracy. They precisely account for optic efficiency and lumen depreciation over time.
- Analyze the Output: Review the final output for your linear fixture count or optimal UFO spacing. This streamlined process bypasses the tedious Point-by-point method while still yielding highly precise deployment strategies.
To see exactly how these technical inputs translate into a functional layout, review the example below:
Always ensure you align these calculated results with your How to Sell Warehouse GTA Online (Max Profit). This final step maximizes operational efficiency and maintains a fully compliant working environment.
FAQ
How many LED high bay lights do I need for my warehouse?
The exact number of LED high bay lights depends on your ceiling height, square footage, and desired brightness. You must calculate your total required lumens first. Then, divide that number by the lumen output of each fixture. Using a comprehensive lighting layout tool helps you visualize the optimal arrangement for your specific floor plan.
What is the recommended footcandle level for warehouse storage?
You should aim for a lighting level between 10 and 30 footcandles for general warehouse storage. However, some facilities involve fine detail work, order picking, or active shipping areas. In these zones, you must increase the intensity to around 50 footcandles for optimal visibility.
How many lumens per square foot should a warehouse have?
You generally need between 10 to 40 lumens per square foot to adequately illuminate a standard warehouse. This metric ensures sufficient brightness across the floor. Active work zones naturally require the higher end of that spectrum. You can reference guidelines from the Illuminating Engineering Society (IES) to fine-tune these targets based on your specific operational requirements.
How far apart should warehouse lights be spaced?
You should generally space your warehouse lights at a distance equal to one to one-and-a-half times your ceiling height. For example, placing fixtures 20 to 30 feet apart works well for a 20-foot ceiling. This spacing typically provides an even distribution of light. You may need adjustments depending on the beam angle of your specific LED fixtures and racking layout.
How does ceiling height affect the number of lights I need?
Taller ceilings require fixtures with significantly higher lumen outputs and narrower beam angles. These specialized optics push the light down to the floor effectively. You might use fewer, more powerful fixtures rather than many low-wattage ones for high ceilings.
What are the OSHA requirements for warehouse lighting levels?
The OSHA standard 1926.56 mandates a minimum of 5 footcandles for general indoor warehouses and storage rooms. Keep in mind that this represents only a baseline safety requirement. Modern efficiency standards typically recommend much higher levels for optimal productivity. Always ensure your lighting design meets these minimums to maintain a safe, compliant working environment.
Is 150W or 200W better for a 20-foot warehouse ceiling?
A 150W LED high bay is generally optimal for a 20-foot ceiling. It provides excellent brightness without overwhelming the space or wasting energy. A 200W fixture offers more lumens, but it suits ceilings 25 feet or higher. Using a 200W fixture at 20 feet can cause uncomfortable glare and create harsh shadows across your aisles.
Why are there dark spots in my warehouse even with new lights?
Dark spots frequently occur when fixtures are spaced too far apart. An incorrect beam angle for your ceiling height also causes them. Additionally, newly installed tall pallet racks can block light distribution if fixtures do not sit directly over the aisles. Consult the Department of Energy lighting guidelines to optimize fixture placement and eliminate shadowing.
Designing Your Optimal Illumination Strategy
Achieving the perfect balance between operational safety and long-term utility savings demands exact metrics rather than simple guesswork. Precise layout planning allows you to eliminate hazardous dark zones. It also boosts employee productivity and ensures full compliance with occupational safety standards. Implementing an LED transition based on hard data effectively slashes overhead costs. This strategy also positions your facility to qualify for significant energy rebates.
To optimize your facility’s energy infrastructure, enter your building dimensions into our warehouse lighting calculator. This tool generates a customized, DLC-qualified LED layout tailored strictly to your precise operational requirements.
