Top Data Center Power Distribution Best Practices [2026]
As AI and high-density workloads push facility limits, nearly 40% of unprecedented outages now stem directly from flaws in electrical infrastructure design. Navigating this rapid evolution requires precision, making data center power distribution best practices the absolute baseline for operational survival. You are no longer just delivering electricity; you are engineering high-density power delivery systems that balance relentless demand with sustainable scalability.
To safeguard operations against downtime, you must rethink your approach to rack power management. Combining intelligent PDU deployment, optimized UPS redundancy configurations, and rigorous branch circuit protection transforms a fragile grid into a resilient asset. Apply these strategies to maximize efficiency and guarantee the uninterrupted performance modern workloads demand.
Achieving this level of performance requires establishing a solid foundational strategy first.
Understanding Data Center Power Distribution Best Practices
This foundational strategy requires highly efficient electricity routing from the utility grid directly to mission-critical IT equipment. When evaluating your electrical infrastructure design, focus on minimizing energy waste across the power chain. Transitioning to higher voltage distribution levels—specifically 480V in North America and 400V globally—is a proven approach. Delivering power at elevated voltages closer to the server racks significantly reduces step-down conversion losses.
You can no longer rely on legacy low-voltage systems to support escalating rack densities. Moving beyond outdated architectures is essential for accurate kVA load planning, ensuring you can support next-generation hardware. Modern Legacy Data Warehousing is Dead (2026 AI Shift) leverage three-phase electricity to maintain a balanced, stable flow to high-density deployments. Implementing these data center power distribution best practices and adhering to industry standards ensures your facility achieves optimal performance and enhanced reliability.
After laying this high-voltage foundation, your next challenge involves adapting to rapid growth without causing disruptive bottlenecks.

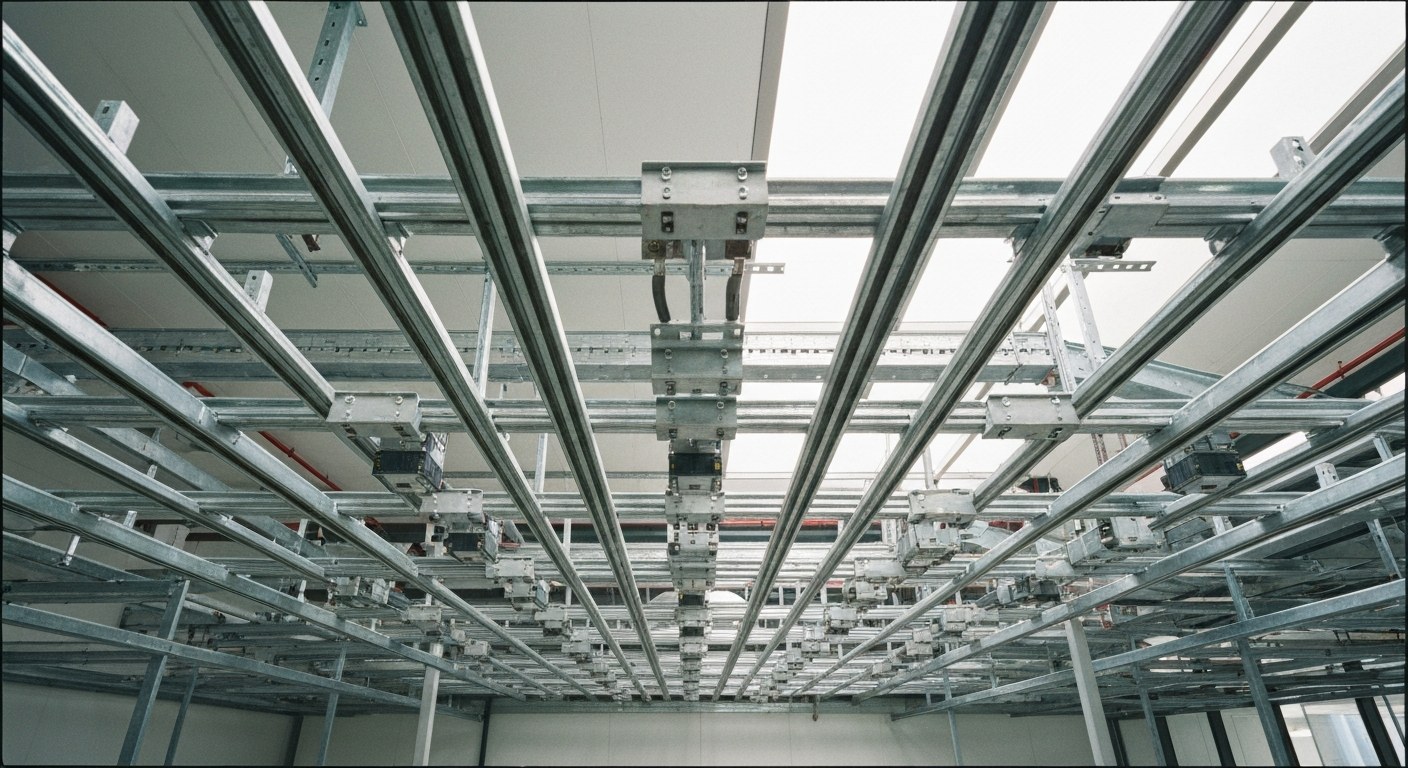

Scalability and Flexibility with Overhead Busway Systems
Keeping pace with demand requires evaluating how your facility handles capacity changes. Transitioning from traditional under-floor heavy cabling to overhead busway systems provides the agility needed for high-density environments.
| Traditional Design | Overhead Busway Architecture |
|---|---|
| Under-floor heavy cabling | Overhead tracks reduce cable clutter and improve thermal management |
| Static circuits and fixed paths | Busbars offer rapid capacity deployment via modular tap-off boxes |

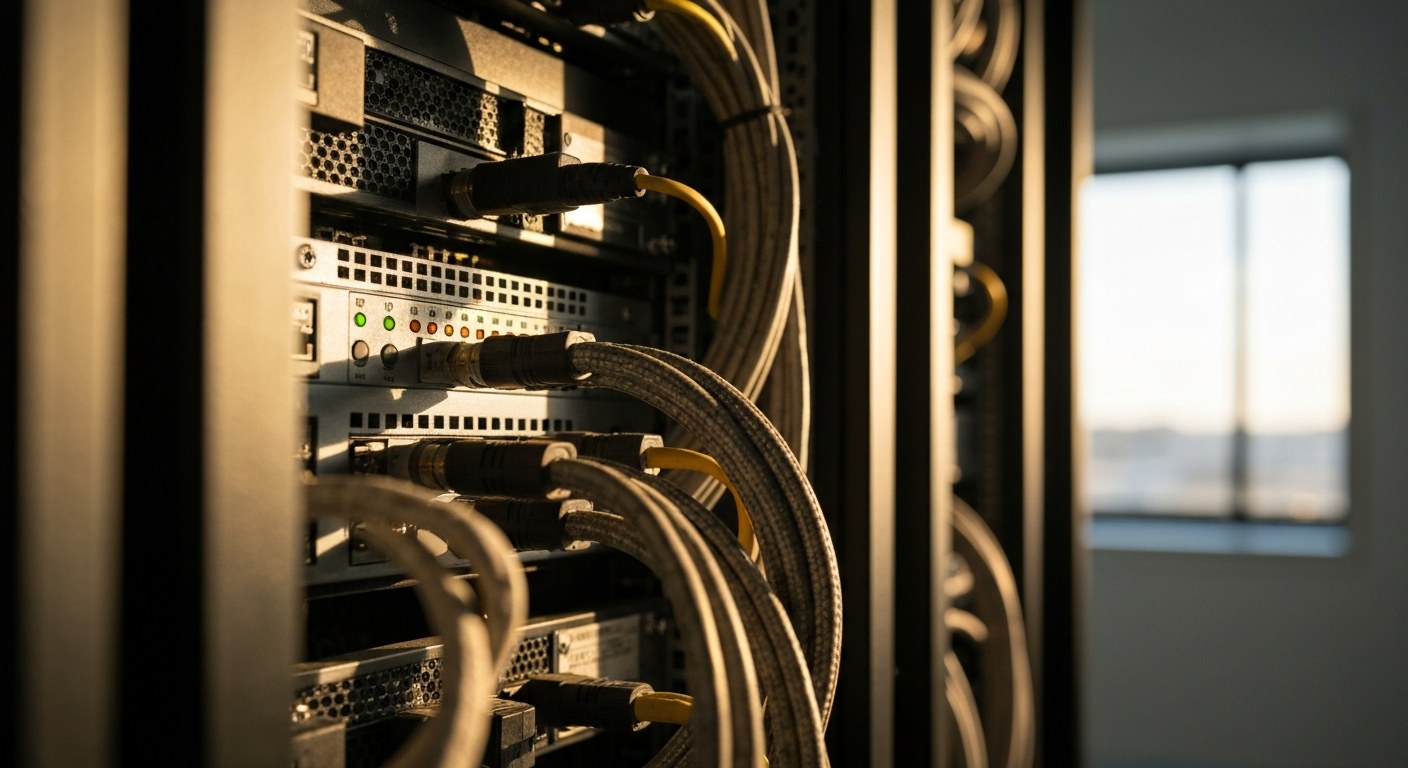

When you implement these solutions, flexible scaling becomes seamless. Combining smart rack PDUs with comprehensive circuit monitoring grants you granular control over every cabinet. You can instantly track loads to ensure new hardware won’t compromise How to Sell Warehouse GTA Online (Max Profit). Recent capacity studies show that relying on busbars accelerates provisioning and significantly enhances airflow by eliminating legacy floor bottlenecks. This approach perfectly aligns with modern data center power distribution best practices.
This scalable agility becomes particularly critical when deploying next-generation compute hardware that demands unprecedented energy.
Powering High-Density AI Workloads and 380V DC Architecture
Scaling facilities to support advanced artificial intelligence requires a fundamental infrastructure shift for high-density power management. Racks exceeding 40 kW are now common, driving a critical transition to 380V DC distribution systems. Operating at these elevated voltages dramatically curtails current draw and mitigates conversion waste. This achieves highly efficient, high-density power delivery tailored specifically for modern AI clusters.
Keeping these intensive environments stable demands electrical systems that seamlessly interface with advanced cooling mechanisms. Integrating Coolant Distribution Units (CDUs) directly with your power management layers ensures electrical availability precisely matches thermal capacity. This alignment prevents equipment throttling during peak operational bursts. See the architectural layout of this integration below:
Maintaining long-term stability requires proactive, intelligent oversight. Robust DCIM software integration empowers you to use automated analytics for predictive load balancing and continuous thermal optimization. This strategic approach lets you anticipate localized hotspots and redistribute compute tasks before critical thresholds are breached. For additional insights, explore liquid cooling solutions or review recent industry guidelines on operating next-generation facilities.
However, even the most advanced AI clusters are only as reliable as their backup power systems.
Maximizing Redundancy with Modular UPS and Prefabricated Skids
Designing facilities for the future requires rethinking core infrastructure to achieve unmatched backup power reliability. Deploying prefabricated modular power skids accelerates infrastructure rollouts while minimizing on-site construction delays. These pre-integrated units allow you to scale seamlessly as compute requirements expand.
Continuous uptime demands optimized UPS redundancy configurations. When comparing N+1 vs 2N redundancy models, N+1 provides a cost-effective safeguard by adding a single backup module. Conversely, 2N offers a fully isolated, dual-path design. Integrating modular UPS systems and Automatic Transfer Switches gives you the control needed to direct loads safely during unexpected disruptions.
Consider these essential strategies for your next phase:
- Utilize prefabricated modular power skids to cut deployment timelines and ensure standardized quality.
- Evaluate your risk tolerance by carefully comparing N+1 vs 2N redundancy models for critical infrastructure loads.
- Activate ‘Eco-mode’ on your modular UPS to achieve 99% operating efficiency without sacrificing rapid response capabilities.
Implementing these targeted methods bolsters overall operational resilience, perfectly complementing your broader approach to microgrid energy management. As illustrated below, modern skid deployments are impressively compact and highly integrated:
While resilience ensures uptime, long-term operational viability now also demands a strict commitment to environmental efficiency.
Sustainability Beyond PUE: ERE, Microgrids, and 24/7 CFE
Modernizing infrastructure means relying solely on Power Usage Effectiveness is no longer enough. Forward-looking operators are shifting toward Energy Reuse Effectiveness (ERE). Capturing waste heat from high-density compute clusters and redirecting it to municipal district heating transforms thermal byproducts into a community resource. This strategy drastically lowers your carbon footprint.
Integrating on-site microgrids paired with Battery Energy Storage Systems (BESS) is essential to insulate operations from grid volatility. These localized grids grant true independence, allowing seamless transitions during peak demand. Combining BESS with strategies for optimizing electrical efficiency in colocation facilities via targeted hardware upgrades builds a highly resilient framework. Understanding What is warehousing operations is crucial here.
Ultimately, the standard championed by the Uptime Institute is the pursuit of 24/7 Carbon-Free Energy (CFE). Rather than purchasing annual offsets, you must match hourly power consumption with local, carbon-free generation. Achieving this requires precise monitoring and agile load shifting to align intensive workloads with periods of high renewable output. This alignment reflects ideal data center power distribution best practices.
Crucially, no efficiency or sustainability gains can overshadow the critical importance of protecting human life and physical assets.
Safety, Grounding, and the Human Element in Maintenance
Building a resilient electrical infrastructure requires prioritizing the fundamental pillars of safety: grounding and bonding, surge suppression, and harmonic filtering. These elements are non-negotiable for protecting sensitive IT equipment and the personnel operating within your facility. Proper implementation mitigates electrical anomalies that could otherwise cause catastrophic failures.
However, technical safeguards alone are insufficient without robust stakeholder collaboration. Bridging the gap between IT, facilities management, and executive leadership is critical for developing a holistic power strategy. Aligning these groups ensures every aspect of your infrastructure complies with industry safety guidelines. This includes everything from core systems down to localized branch circuit protection, adapting to evolving operational demands.
The success of your safety protocols ultimately relies on the human element. Empowering well-trained teams through continuous education is essential for performing ongoing, concurrent maintenance without risking unexpected downtime. Integrating advanced safety methodologies and prioritizing cross-departmental communication elevates your data center power distribution best practices. This creates a secure environment ready for future technological shifts like SMART Goals for Warehouse Managers (Proven KPIs).
FAQ
What are the most efficient ways to distribute power in a data center?
To achieve maximum efficiency, you should implement three-phase power distribution directly to the rack level, minimizing conversion losses. You can also deploy Energy Star certified intelligent PDUs that monitor power consumption in real-time, allowing you to dynamically balance loads. Moving to higher voltage deployments, such as 415V or 480V AC, further reduces energy waste across the facility.
How to calculate power density per rack for AI workloads?
You calculate power density by multiplying the voltage and current ratings of all IT equipment installed in a specific rack, typically measured in kilowatts (kW). Because AI workloads utilize high-performance GPUs, you must account for peak utilization metrics rather than baseline idle power. It is highly recommended to consult ASHRAE thermal guidelines to ensure your cooling infrastructure can handle densities exceeding 40 kW per rack.
What is the difference between AC and DC power in a data center?
Alternating current (AC) is the standard utility power format, characterized by voltage that changes direction, while direct current (DC) flows uniformly and is native to IT components. By distributing DC power throughout the data center, you eliminate multiple AC-to-DC conversion steps, significantly improving overall electrical efficiency. Many modern hyper-scale facilities are adopting 380V DC architectures to streamline their infrastructure.
How do you manage power redundancy for critical data center equipment?
You manage redundancy by deploying concurrent power paths, typically using an A/B feed design where each rack is supported by separate uninterruptible power supply (UPS) systems. According to Uptime Institute Tier standards, critical infrastructure requires at least an N+1 or 2N fault-tolerant architecture to prevent downtime. Regular testing of automatic transfer switches and backup generators is essential to ensure these secondary systems function seamlessly during utility outages.
What are the common causes of electrical failure in data centers?
The most frequent causes of electrical failure involve human error during routine maintenance, followed closely by aging UPS batteries failing under load. You might also encounter catastrophic failures due to circuit overloads if rack power limits are consistently exceeded by densely packed AI servers. To mitigate these risks, implement strict capacity management protocols and predictive maintenance schedules.
How to improve power distribution unit (PDU) efficiency?
You can optimize PDU efficiency by upgrading to intelligent, rack-switched models that provide granular, outlet-level power monitoring and remote management capabilities. Ensuring phase balancing across your three-phase PDUs will prevent neutral wire overloading and reduce harmonic distortion. For further insights into optimization strategies, the IEEE guidelines on power electronics offer robust methodologies for reducing distribution losses.
What safety standards apply to data center power distribution systems?
When designing and operating data center electrical systems, you must comply with the National Electrical Code (NEC) and NFPA 75 standards for the protection of IT equipment. Additionally, international frameworks like IEC 60364 dictate stringent grounding and bonding requirements to prevent arc flashes and electrical shocks. Adhering to these rigorous codes ensures your facility maintains a safe working environment for all personnel.
How do you audit power losses in data center electrical circuits?
You conduct a power loss audit by deploying branch circuit monitoring systems that measure voltage drops and current leakage from the UPS downstream to individual server outlets. By analyzing this telemetry data, you can pinpoint inefficient transformers, degraded cabling, or unbalanced loads causing thermal dissipation.
Key Takeaways for Future-Proofing Your Facility
Modernizing your infrastructure demands a strategic pivot toward higher deployment voltages, intelligent AI-driven load optimization, and flexible modular systems. Relying on legacy frameworks leaves your operation vulnerable to costly inefficiencies and limits scalability as high-density computing workloads rapidly expand. Aligning your facility management and IT stakeholders allows you to proactively address these shifting, complex energy demands head-on.
Thoroughly evaluating your current power chain and integrating these data center power distribution best practices is essential. You might start by auditing your UPS topography or deploying smart PDU monitoring. Taking decisive action today ensures your infrastructure remains resilient, highly efficient, and fully equipped to support the next generation of enterprise technology.
